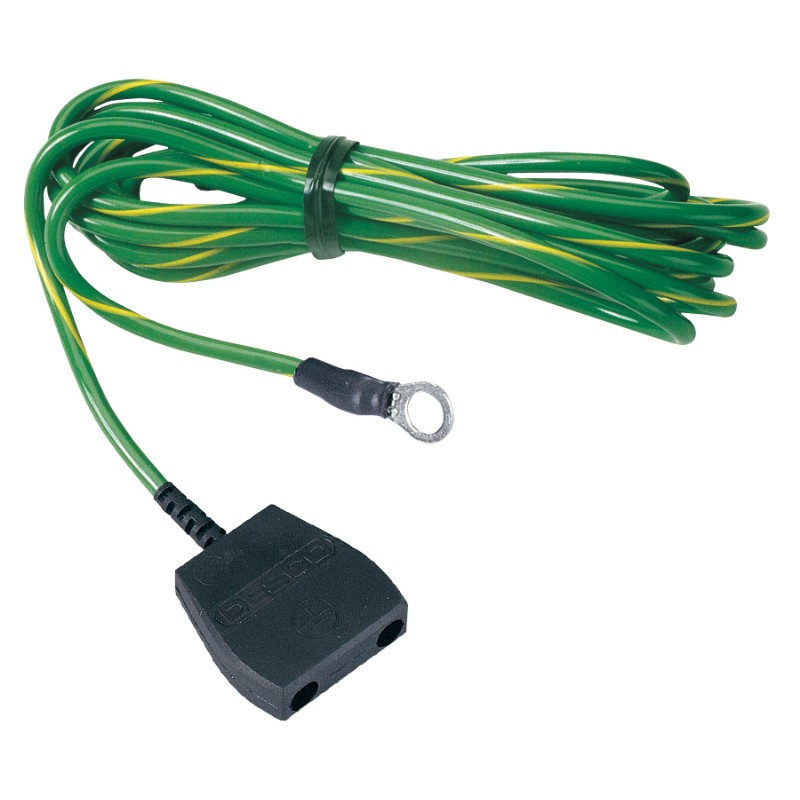

09820 – CORD, COMMON GROUND, 10mm SOCKET, NO RESISTOR, 10′

Features

• 10mm socket snap” compatible with mats that have a 10mm stud snap
• Two banana jacks
  Provides two grounding points for wrist straps or carts
• Ring terminal at end of ground cord
  Allows easy attachment to electrical ground
• Low profile
  Reduces snagging of clothes and work instruments
• Extra ring terminal included
  Allows for customizing cord length
• Available as a kit (includes resistor and 15′ cord)
  14213 kit includes one 09826 common point ground and one 09864 universal snap kit
• Per ANSI/ESD 56.1
  No resistor is recommended, but with resistor is acceptable
• Made in The United States of America


Technical Info

• TB-2003 – Common Point Grounding Units Installation Instructions

• 09820 – Workmat Common Point Ground Cord Socket
