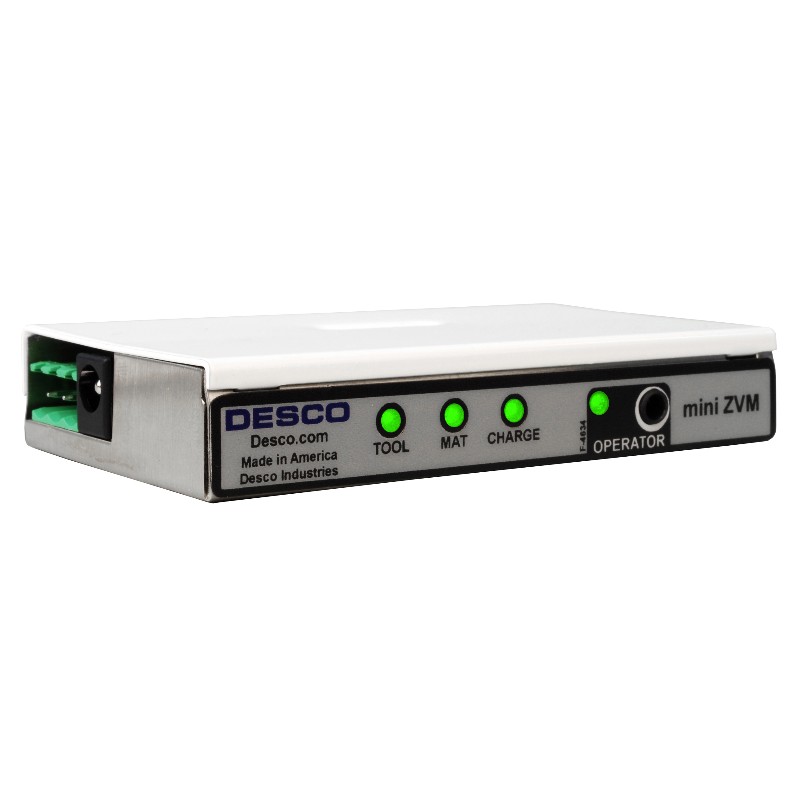

19101 – MONITOR, MINI ZVM, NORTH AMERICA

Features

• Single Station Continuous Monitor for Operator, ESD Work Surface, and Tool Ground
  Continuously monitors charge generation and ground integrity of a single operator, ESD workstation and one additional tool. Eliminates the need for periodic testing and record keeping.
• Patented Dual Polarity Technology Provides Real-Time Continuous Monitoring for Operator Path to Ground and Presence of 1 Meg Resistor
  True continuous monitoring (versus pulsed or intermittent) of wrist strap functionality and operator safety according to accepted industry standards without capacitance variations from personnel or environment.
• Operator Charge Generation Detection Alarm
  Alarms if operator generates or comes in contact with a voltage that would be dangerous to an ESD susceptible item.
• Optional Tool Ground
  Can be used to monitor the resistance to ground of any grounded conductive tool or accessory < 7 ohms.
• User Adjustable Features
  Use the internal DIP switches to enable / disable test circuits and modify the operator test voltage, operator charge detection voltage and worksurface resistance limit.
• Use with Dual-Wire Wrist Straps
• NIST Calibrated with Certificate
• Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of Desco products, see Calibration.
• Made in the United States of America


PowerPoint Presentations:


Mini ZVM Overview

Technical Info

• TB-3053 – Mini Zero Volt Monitor: Installation, Operation and Maintenance
