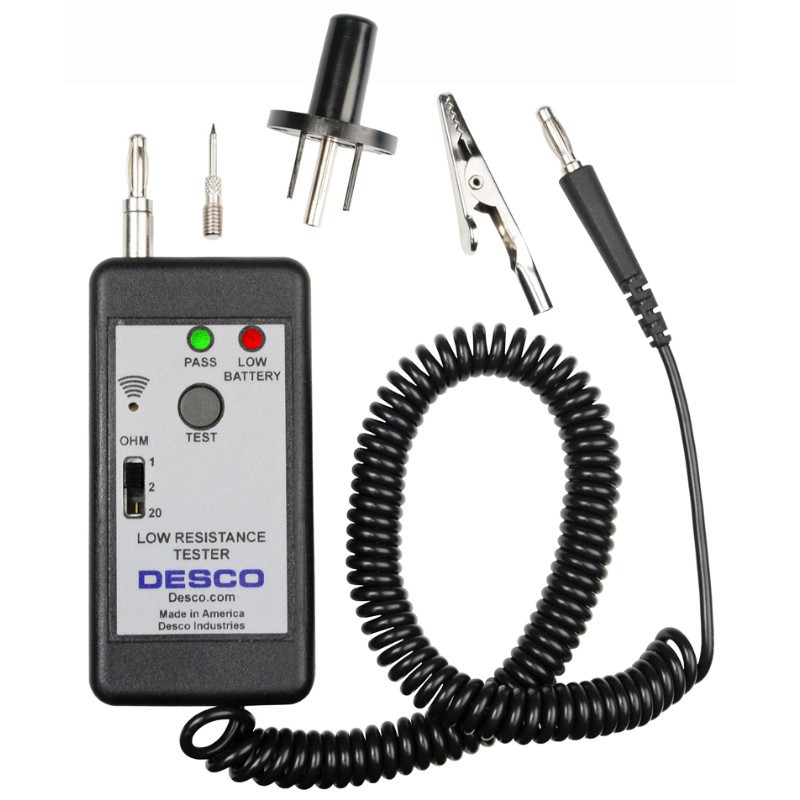

19245 – LOW RESISTANCE TESTER

Features

• Compliance Verification for Grounding Systems

Measures the grounding path resistance of banana jacks and other equipment

• Pass / Fail Selectable Test Ranges: <1 Ohm, <2 Ohms, and <20 Ohms

Designed to test the low resistance grounding limits of ANSI/ESD S20.20, ANSI/ESD S6.1 and recommendations of ESD TR20.20

• Simple Operation with Audio and Visual Indicators
  One button operation with pass indicators confirm that the grounding conductor being tested meets the test range
• Constant Current
  Ensures testing accuracy at very low resistances compared to standard multimeter
• Lightweight Compact Design
  Small size allows for the Low Resistance Tester to be carried in a shirt pocket
• Long Battery Life
  More than 10,000 (2 second) tests
• Low Battery Indicator
  Replaceable 3 volt watch style battery
• Made in the United States of America


Technical Info

• TB-3055 – Low Resistance Tester: Operation and Maintenance
