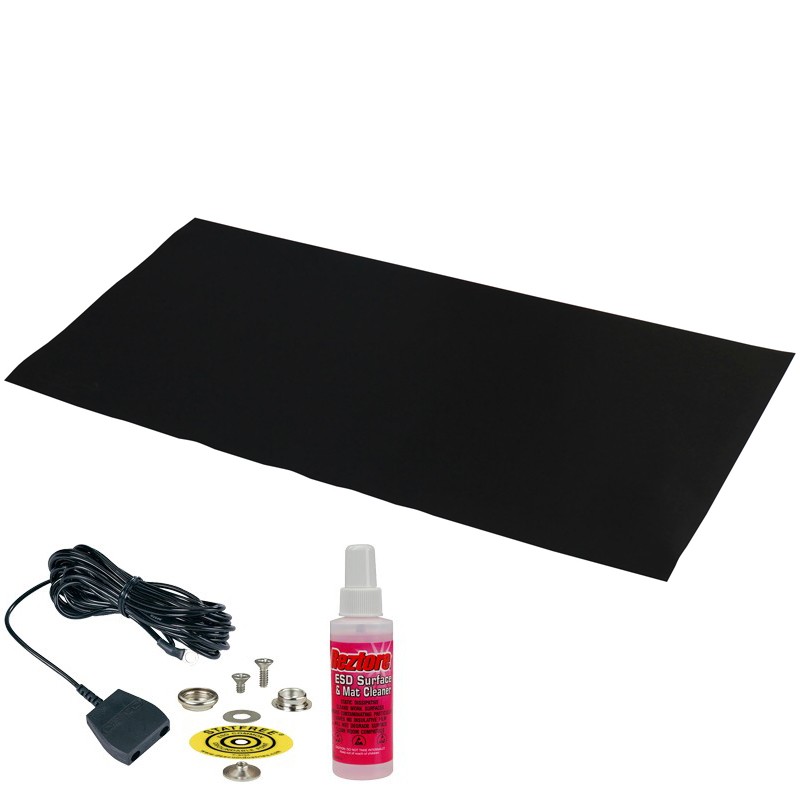

42541 – MAT, STATFREE Z2, 3-LAYER VINYL, BLACK,0.125”x24”x36”

Features

• Heat Fused 3-Layer Vinyl Composite

Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.

• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Abrasion Resistant Top Layer – Limited Lifetime Warranty

Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.

• Conductive (<10⁴ Rtt) Mesh Middle Layer Bottom Layer – Limited Lifetime Warranty

The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with monitors. Electricals will not drift for the life of the mat.

• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Cushioned Bottom Layer – Limited Lifetime Warranty

Provides additional energy absorption for components susceptible to physical shock.

• Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer

Identifies ESD protective product for control & auditing purposes.

• Lead-free RoHS compliant
• Includes 14213 Ground Cord
• Made in the United States of America

Technical Info

• TB-2000 – Installation and Maintenance of ESD Protective Worksurfaces

• PM-112 – Dissipative Vinyl Material 3-Layer, 0.125" (3.2mm)

• TB-7016 – MSDS, STATFREE Z2™ DISSIPATIVE THREE LAYER VINYL
