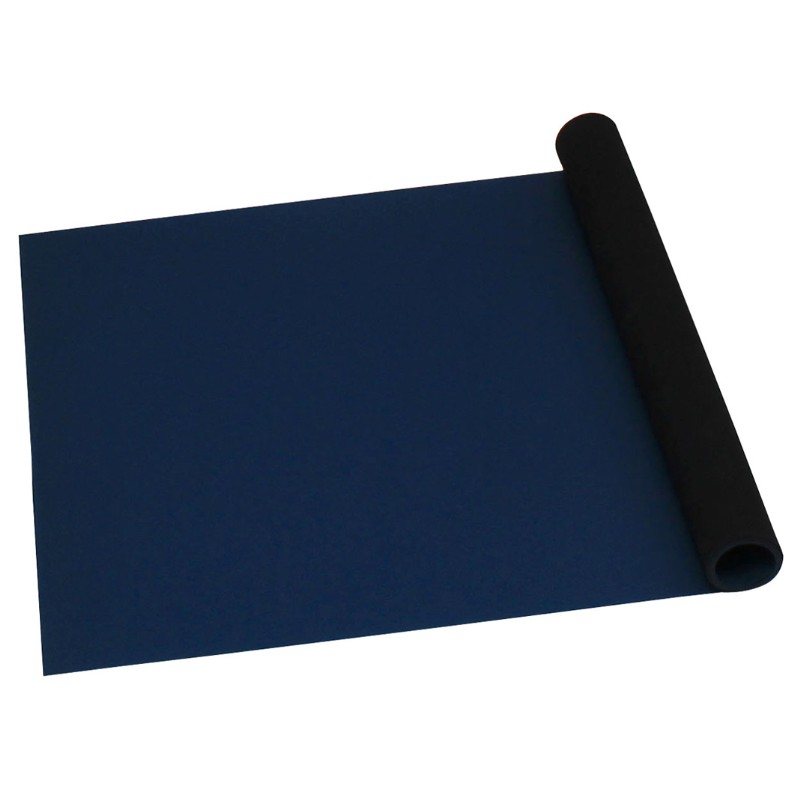

66101 – Statfree T2 Premium Dissipative Dual Layer Dark Blue Rubber Roll, 48 Inch x 40 Feet, .060 Inch Thickness

Features

• Dissipative Dual Layer Rubber Material
• Provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface.
• Dissipative (10E6 – 10E8 ohms Rtt) Top Layer – Limited Lifetime Warranty
  Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.
• Conductive (<10^4 Rtt) Bottom Layer – Limited Lifetime Warranty
  The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD workstation monitors. Electricals will not drift for the life of the mat.
• High Strength Nitrile Rubber Compound
  Designed to withstand abrasion, stretching, and tearing and may be used in soldering applications with flux and other chemicals. Click Here for Chemical Resistance Chart
• Ultraviolet (UV) Stabilizer Additives
  Stabilizes color retention, insures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed.
• Non-Humidity Dependence
  Provides consistent electrical performance regardless of ambient humidity
• Lot Traceability Information
  Provides tracking information for lifespan of the product and to ensure quality control.
• Lead-free RoHS compliant
• Made in the United States of America

"The most important functional consideration for worksurfaces is the RTG resistance from the top of the surface to the groundable point." ANSI/ESD S20.20 Table 1 recommends a requirement of less than 1 x 10E9 ohms. "If Charged Device Model damage is a concern then setting a lower resistance limit should be considered. Typically, 1 x 10E6 ohms." "Durability factors that should be considered are hardness, abrasion resistance, tear resistance, etc. Worksurfaces may require special heat resistant materials. Light reflection may be an important ergonomic consideration." (Ref: TR 20.20 section 5.3.1).

Due to variations in computer monitor displays, color shown may not be exact. For true accurate color, please email Service@Desco.com to request an actual sample.

Technical Info

• TB-2000 – Installation and Maintenance of ESD Protective Worksurfaces

• PM-104 – Statfree T2 Material

• TB-7017 – MSDS, STATFREE T2™ DISSIPATIVE DUAL LAYER RUBBER
