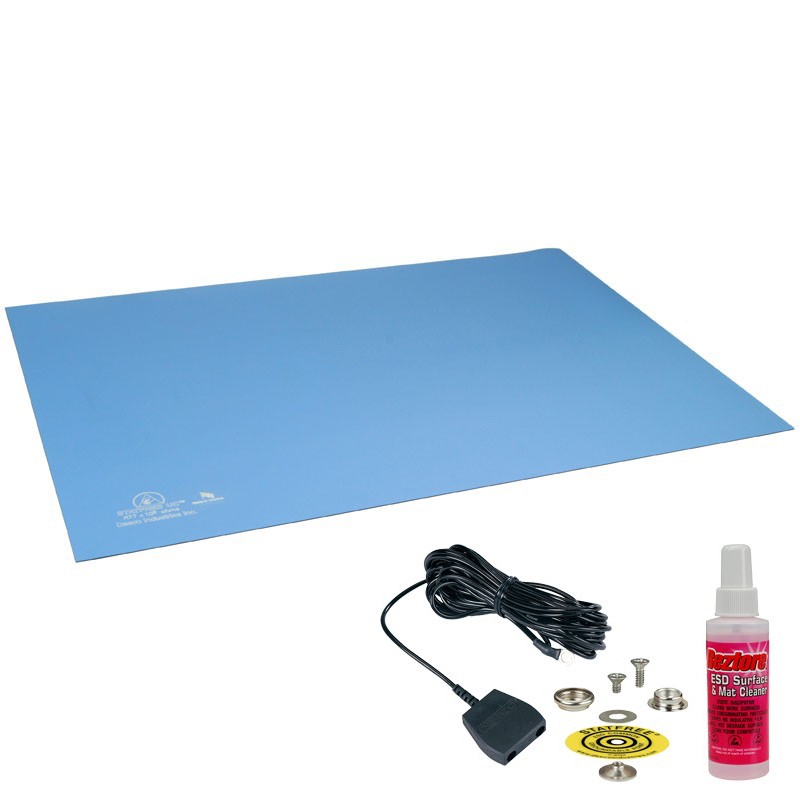

66302 – STATFREE UC 2-LAYER RUBBER MAT SKY BLUE, 0.080”x24”x36”

Features

• Dissipative (1 x 10⁶ to < 1 x 10⁹ ohms Rtt) Colored Top Layer

Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.

• Conductive (< 1 x 10⁴ ohms Rtt) Black Bottom Layer

The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD continuous monitors.

• No Detectable Levels of Silicone or DOP

Approved* for used in Class 100 clean rooms. Request a sample to test to your requirements.

• High Strength Nitrile Rubber Compound

Designed to withstand abrasion, stretching, and tearing and may be used in soldering applications with flux and other chemicals. Click Here for Chemical Resistance Chart.

• Ultraviolent (UV) Stabilizer Additives

Stabilizes color retention, ensures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed.

• Lead-free RoHS compliant
• Includes 14213 Ground Cord and a 4 Ounce Sample of Reztore® Mat Cleaner
• Made in the United States of America

* Although clean room requirements vary, Statfree^® UC material will most likely meet the requirements for a class 100 or higher clean room.

Technical Info

• PM-121 – Statfree UC™ Dual Layer Dissipative Rubber, 2mm and 6mm
