Clean Room Torque Screwdrivers🪛

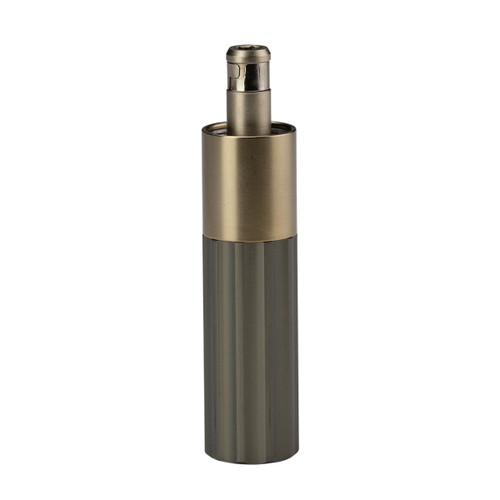

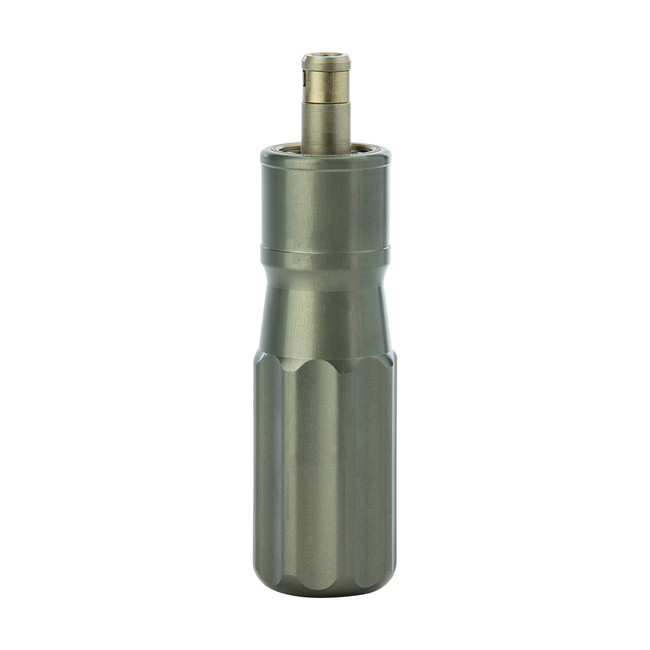

Clean Room Torque Screwdrivers meets a growing trend of clean room manufacturing, the need for torque tools that meet stringent cleanliness requirements has increased. Responding to this manufacturing need, Mountz offers clean room torque screwdrivers. Clean Room screwdriver is a preset torque limiting screwdriver (internally adjustable).
The cam-over design prevents over torquing for your application. Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789: 2003 (+/- 6% of setting).
How do you know if your screwdriver complies with the cleanroom standard for audit purposes?
- Exceeds or meet Class 100 clean room standards.
- ANSI National Accreditation Board | UKAS
- Special seals prevent contamination.
- External components are high-grade stainless steel to inhibit any form of corrosion.
- Special micro filtered internal lubricant.
- Aluminium handle sealed with PTFE impregnated anodized finish.
- Tamper-proof internal adjustment.
- Tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer.
- Mountz San Jose, CA is a certified ISO 9001:2015 company. Mountz, Inc. committed to quality through the rigorous process of Quality Management Systems (QMS) implementations and compliance.
Torque Ranges
Clean Room Standards
According to the United States specification FED-STD-209D, Classes of cleanliness are defined by the number of particles per cubic foot. Particle sizes shown in the following table.
Measured Particles Size (Microns)
| Class | 0.1 | 0.2 | 0.3 | 0.5 | 5.0 | ||||
| 1 | 35 | 7.5 | 3 | 1 | – | ||||
| 10 | 350 | 75 | 30 | 10 | – | ||||
| 100 | – | 750 | 300 | 100 | – | ||||
| 1,00 | – | – | – | 1,000 | 7 | ||||
| 10,000 | – | – | – | 10,000 | 70 | ||||
| 100,00 | – | – | – | 100,00 | 700 |
