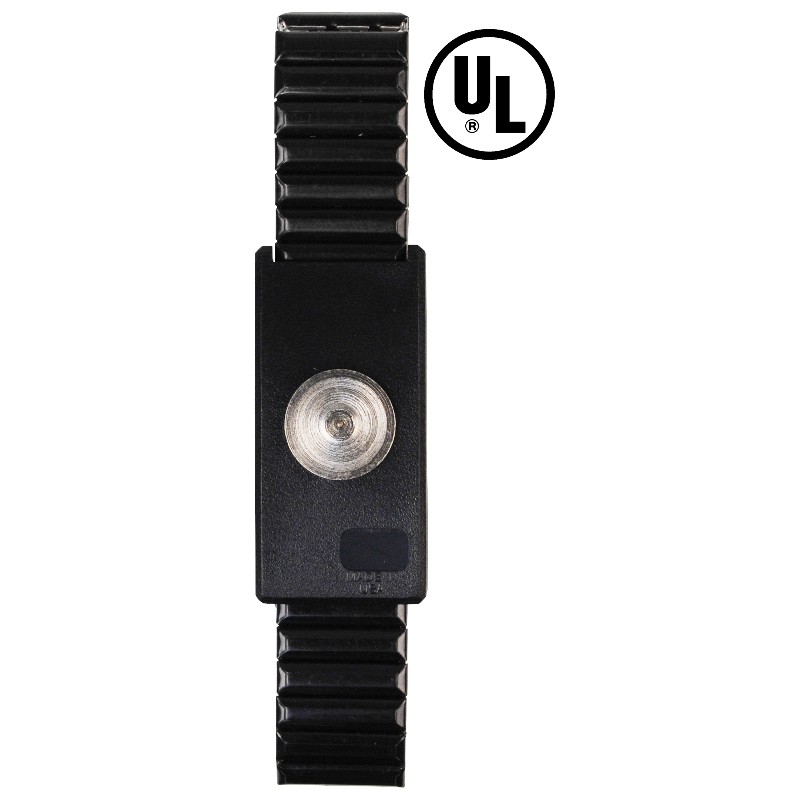

09186 – WRISTBAND, JEWEL, MAGSNAP, ADJ METAL, ONYX

Features

• Metal Expansion Wristband

Used with a coil cord to create a path-to-ground for an operator with resistance<3.5 X 10E7 ohms per the required limits of ANSI/ESD S20.20 for Method 1.

• Magnetic Connection Between Wrist Band and Coil Cord
  Superior electrical connection to eliminate intermittent failures of traditional snaps;extends the lifespan of the wrist strap. Maintains 1-5 pound release to prevent accidental disconnects and increased safety.
• Patented¹ Size Adjustment
  Designed to allow the operator to adjust the size (circumference: 5.75" – 13") to their wrist.
• Medical Grade Series Stainless Steel Backplate and Links
  Creates a more reliable path-to-ground² for the operator.
• Solid Stainless Steel Machined Snap Stud
  Solid material will provide a consistent 1-5 pound release to prevent accidental disconnects between wristband and cord.
• Date Coded
  Provided so that the lifespan of the product may tracked and to ensure quality control.
• UL Listed
  Meets UL requirements to ensure operator safety.
• Made in United States of America

  References
  1. Patent Number 5,586,351 – Adjustable Antistatic bracelet with
  snap-assembled permanent
  2. Metal expansion bracelet style wrist cuffs may trap moisture underneath
  and can be more effective for people with dry skin."
  [ESD Handbook TR20.20 section 5.3.2.4.3]

Technical Info

• TB-2005 – Wrist Straps Grounding – Testing and Maintenance

• 09204 – MagSnap® Metal Expansion Wristband
