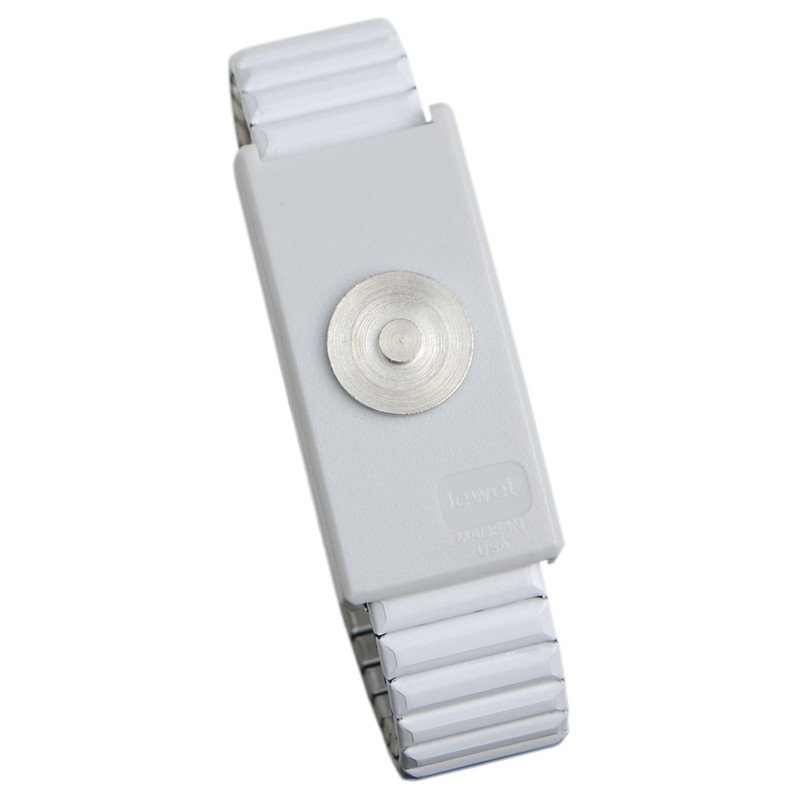

09210 – WRISTBAND, JEWEL, MAGSNAP, ADJ METAL, WHITE

Features

• Double Bagged
  Controls contamination of contents before the product is transferred to the cleanroom.
• Ultrasonic Cleaned, Dried and Packaged in Class 1000 Controlled Environment
  Removes contamination from products for use in clean environments.

• Metal Expansion Wristband
  Used with a coil cord to create a path-to-ground for an operator with resistance<3.5 X 10⁷ ohms per the personal grounding required limits of ANSI/ESD S20.20
• Magnetic Connection Between Wristband and Coil Cord
  Superior electrical connection to eliminate intermittent failures of traditional snaps; extends the lifespan of the wrist strap. Maintains 1-5 pound release to prevent accidental disconnects and to provide increased safety.
• Patented¹ Size Adjustment
  Designed to allow the operator to adjust the size (circumference: 5.75" – 13") to their wrist.
• Medical Grade Series Stainless Steel Backplate and Links
  Creates a more reliable path-to-ground2 for the operator.
• Solid Stainless Steel Machined Snap Stud
  Solid material will provide a consistent 1-5 pound release to prevent accidental disconnects between wristband and cord.
• Date Coded
  Provided so that the lifespan of the product may tracked and to ensure quality control.
• UL Listed
  Design evaluated by Underwriters Laboratories.
• Made in the United States of America

1. Patent Number 5,586,351 – Adjustable Antistatic bracelet with snap-assembled permanent
2. Metal expansion bracelet style wrist cuffs may trap moisture underneath and can be more effective for people with dry skin." [ESD Handbook TR20.20 section 5.3.2.4.3]

Technical Info

• 09210 – Jewel MagSnap® White Metal Adjustable Wrist Straps
