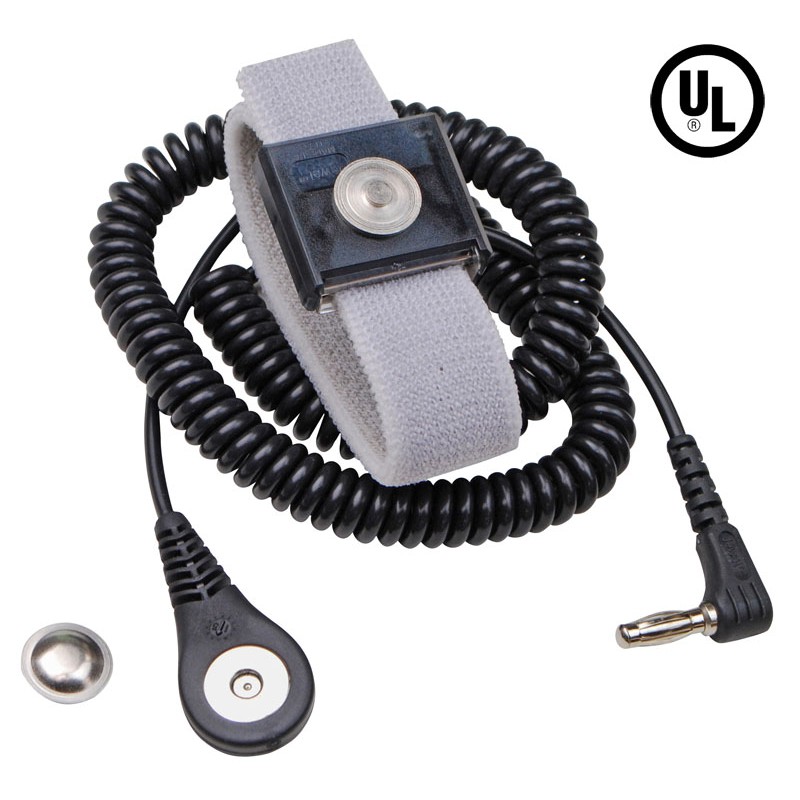

09202 – WRIST STRAP, JEWEL, MAGSNAP, ADJ ELAST, ONYX, 6′ ANGLE CORD

Features

• Elastic Expansion Wristband and Coil Cord

Creates a path-to-ground for an operator with resistance <3.5 X 10⁷ ohms per the required limits of ANSI/ESD S20.20 for Method 1.

• Magnetic Connection Between Wrist Band and Coil Cord

Superior electrical connection to eliminate intermittent failures of traditional snaps; extends the lifespan of the wrist strap. Maintains 1-5 pound release to prevent accidental disconnects and increased safety.

• Elastic Expansion Wristband

– Floating Cam Lock Size Adjustment
Allows for easy size adjustment and band material replacement.
– Knitted Band Material with Conductive Silver Plated Polypropylene
Creates a better electrical connection with operator especially for dry skin or in dry environments.
– Solid Stainless Steel Machined Snap Stud
Solid material will provide a consistent 1-5 pound release to prevent accidental disconnects between wristband and cord.

• Six Foot (12 Inches Of Coils) Coil Cord

– Strain Relief Tests Over 1 Million Cycles; 62 Times The Minimum Requirement Per ESD S1.1
Eliminates intermittent failures that occur with less durable cords and extends the lifespan of the wrist strap.
– Patented¹ Spring Supported Contoured Banana Plug
Designed to prevent wear to banana springs that will leads to accidental disconnects from banana jacks.
– Right Angle Banana Design
Extends coil cord life by reducing fatigue at the strain relief of the banana plug and by reducing incidents of being struck by operator, chair and carts that
damage the banana plug.
– Low Profile Snap Design
Prevents cord from being disconnected or getting in the way of operator”
