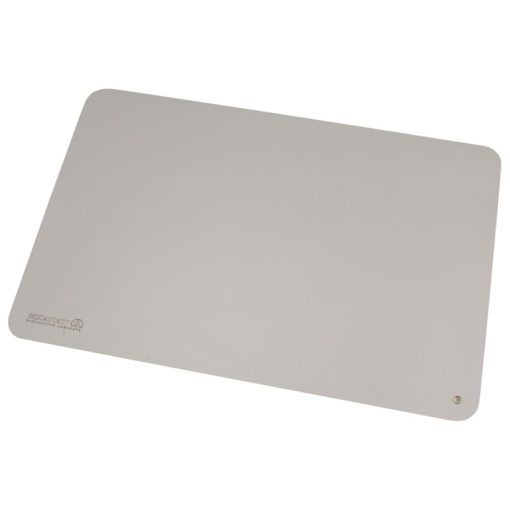

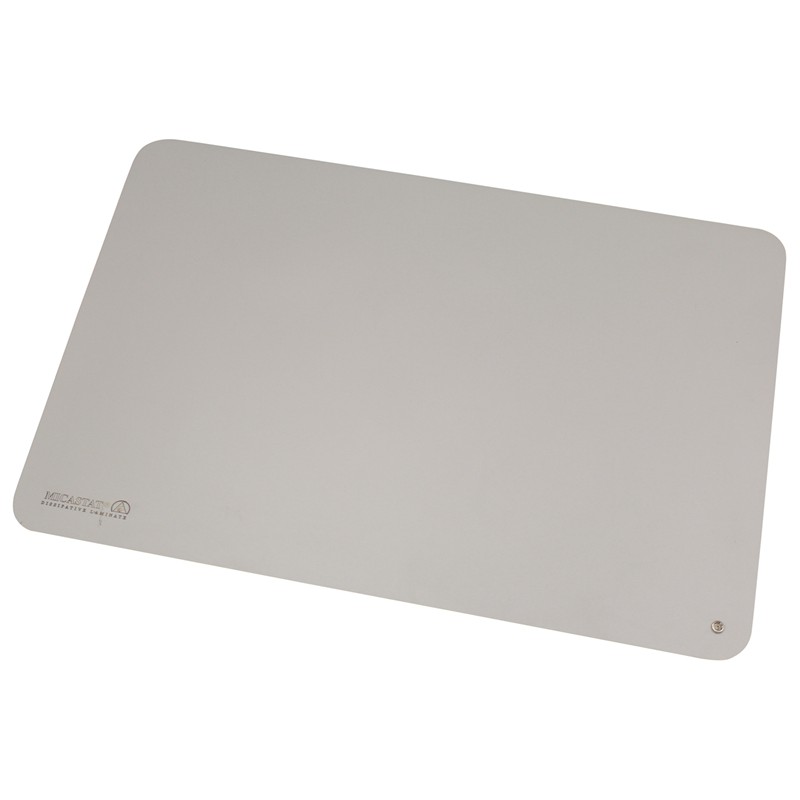

10342 – MAT, MICASTAT, ESD GREY, 0.040” x 24” x 36”

Features

• Dissipative High Pressure Thermoset Amino Resin Laminate

Provides reliable path to ground and eliminates static charge generation when used as a worksurface

• Dissipative (< 1 x 10⁹ ohms Rtg)

Meets ANSI/ESD S20.20 worksurface required limit for contact with ESD susceptible items.

• Dedicated Conductive Layer

Allows the Micastat^® to be used with ESD continuous monitors.

• Pre-Installed Snap, Double-Side Tape on Bottom, and 09826 Grounding Kit included

Installs to existing worksurface.

• Abrasion Resistance: Exceeds NEMA LD 3-3.01 Standard

Suitable for use as a bench top worksurface.

• Lead-free RoHS compliant
• Made in the United States of America

.

Technical Info

• TB-7047 – Micastat® Dissipative Laminate – Installation and Maintenance

• 10200 – Dissipative Micastat® Laminate
