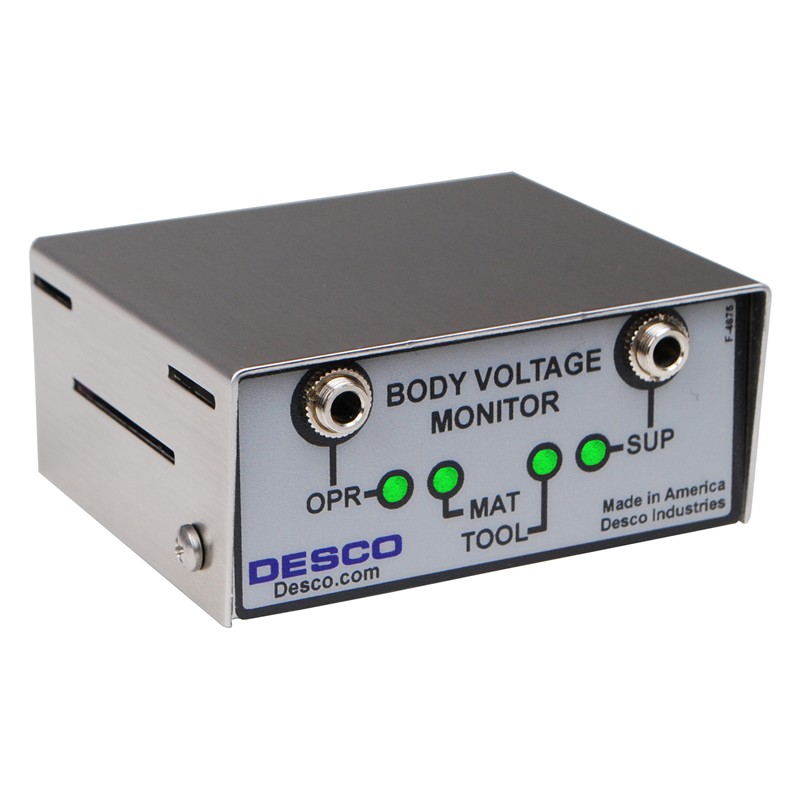

19241 – MONITOR, BODY VOLTAGE, NORTH AMERICA

Features

• Single Station Continuous Monitor for Operator, ESD Worksurface, and Tool Ground
  Continuously monitors the charge generation of one operator, the ground integrity for one mat and one metal tool or fixture; eliminating the need for periodic testing and record keeping of wrist straps.
• Dual-Channel Voltage Monitoring Technology (Alarms at >±3 VDC)
  One lead of the dual-wire wrist strap provides a path-to-ground for the operator and the other lead continuously monitors for any voltage induced onto the operator greater than ±3 VDC. Voltage on the operator can be caused by strong AC fields in the work area or by other charge generators such as rolling a non-ESD safe chair.
• Monitored Supervisor Jack
  Use to monitor a supervisor or second operator at the workstation.
• Optional Tool Ground
  Use to monitor the ground integrity of a conductive tool or fixture less than 3 Ohms.
• Use with Dual-Wire Wrist Straps

• NIST Calibrated with Certificate
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of Desco products, see Calibration
• Made in the United States of America

Desco”
