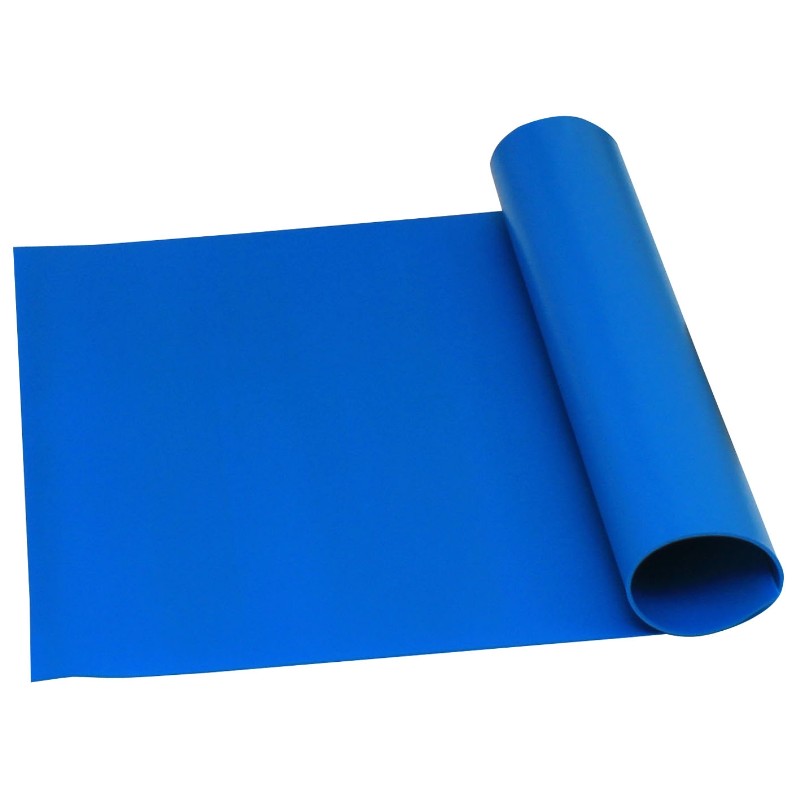

42516 – Statfree Z2 Dissipative 3-Layer Blue Vinyl Roll, 30 Inch x 50 Feet, .125 Thickness

Features

• Heat Fused 3-Layer Vinyl Composite

Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.

• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Abrasion Resistant Top Layer – Limited Lifetime Warranty



Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.

• Conductive (<10⁴ Rtt) Mesh Middle Layer Bottom Layer – Limited Lifetime Warranty



The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with monitors. Electricals will not drift for the life of the mat.

• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Cushioned Bottom Layer – Limited Lifetime Warranty



Provides additional energy absorption for components susceptible to physical shock.

• Lead-free RoHS compliant
• Made in the United States of America





Technical Info

• TB-2000 – Installation and Maintenance of ESD Protective Worksurfaces

• PM-112 – Dissipative Vinyl Material 3-Layer, 0.125″ (3.2mm)

• TB-7016 – MSDS, STATFREE Z2™ DISSIPATIVE THREE LAYER VINYL
