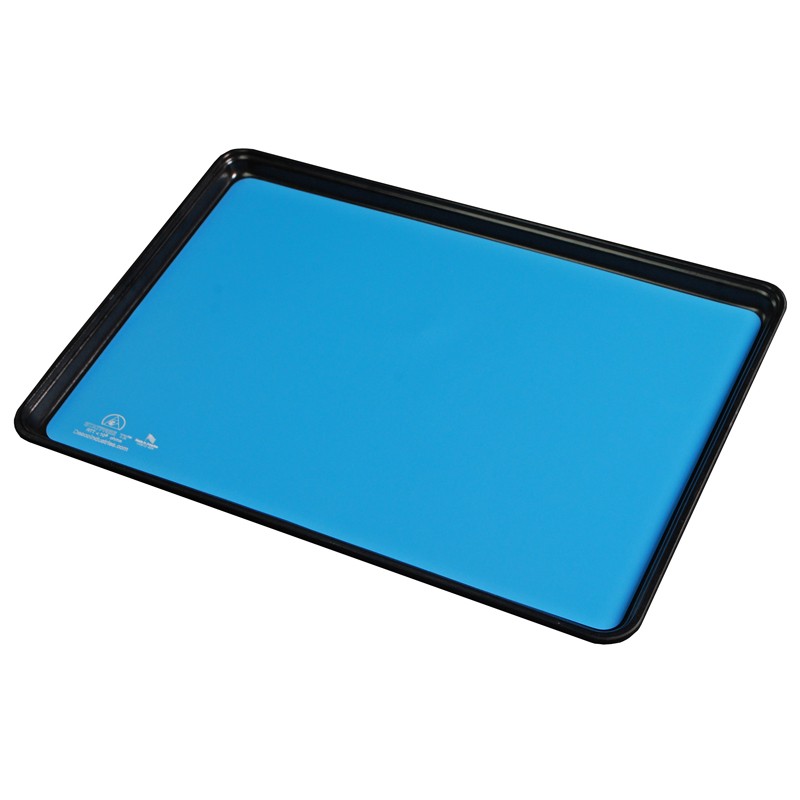

66125 – Statfree T2™ Tray Liner – 0.060”x16”x24″, Blue

Features

• Dissipative Dual Layer Rubber Cut to Fit Liner for 16" x 24" Cafeteria Trays

Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.

• Color (1 x 10⁶ to < 1 x 10⁹ ohms Rtt) Top Layer – Limited Lifetime Warranty

Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.

• Black Side (<1 x 10⁴ Rtt) Bottom Layer – Limited Lifetime Warranty

The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD workstation monitors. Electricals will not drift for the life of the mat.

• High Strength Nitrile Rubber Compound

Designed to withstand abrasion, stretching, and tearing and may be used in soldering applications with flux and other chemicals. Click Here for Chemical Resistance Chart

• Ultraviolet (UV) Stabilizer Additives

Stabilizes color retention, insures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed.

• Non-Humidity Dependence

Provides consistent electrical performance regardless of ambient humidity

• Lot Traceability Information

Provides tracking information for lifespan of the product and to ensure quality control.

• Lead-free RoHS 2 compliant
• Made in the United States of America

Technical Info

• TB-2000 – Installation and Maintenance of ESD Protective Worksurfaces

• PM-104 – Statfree T2 Material

• TB-7017 – MSDS, STATFREE T2™ DISSIPATIVE DUAL LAYER RUBBER
