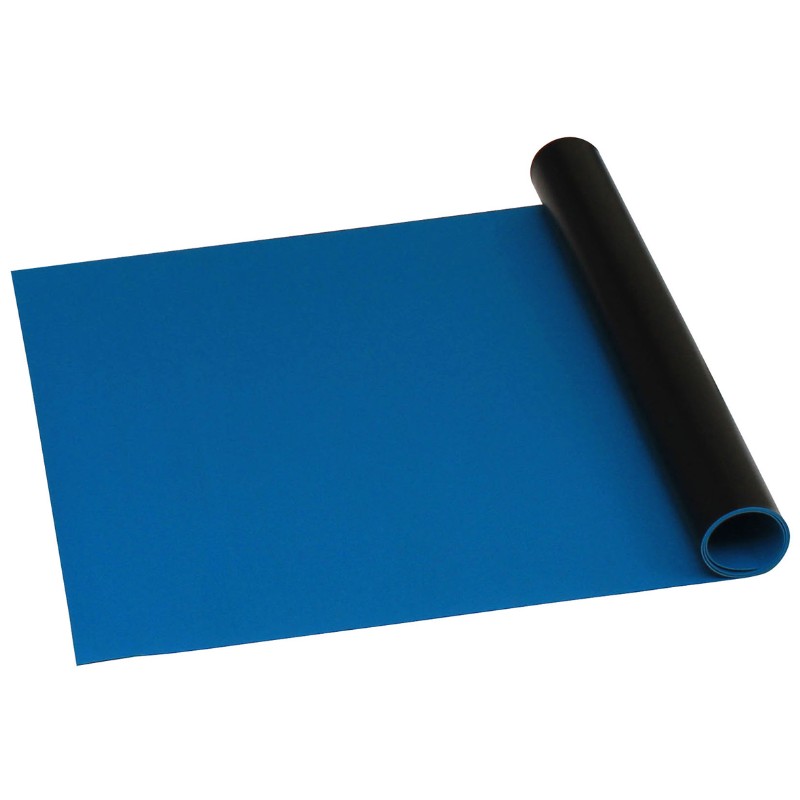

66160 – Statfree B2™ Roll – 0.060”x24”x50′, Dark Blue

Features

• Heat Fused Thermoplastic 2-Layer Vinyl

Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.

• Dissipative (1 x 10⁶ to < 1 x 10⁹ ohms Rtt) Top Color Layer – Limited Lifetime Warranty

Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.

• Conductive (<10⁶ Rtt) Bottom Black Layer – Limited Lifetime Warranty

The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with continuous monitors. Electricals will not drift for the life of the mat.

• Laser Engraved With ESD Protective Symbol, Resistance, and Manufacturer Information

Identifies ESD protective product for control & auditing purposes

• Lead-free RoHS 2 and REACH compliant
• Made in the United States of America

.

Technical Info

• TB-2000 – Installation and Maintenance of ESD Protective Worksurfaces

• PM-127 – Statfree B2 Material

• TB-7051 – Statfree B2™ Dissipative 2-Layer Vinyl
