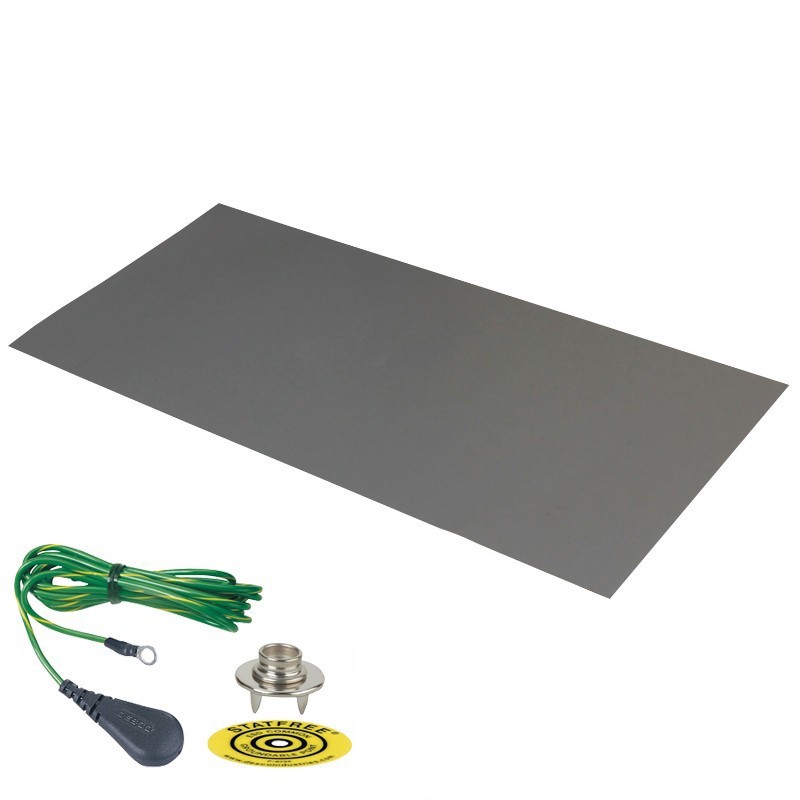

66223 – DUAL LAYER RUBBER MAT, GREY, 0.060”x24”x36”, W/GRND

Features

• Dissipative Dual Layer Rubber Material

Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.

• Dissipative (1 x 10⁶ to < 1 x 10⁹ ohms Rtt) Top Layer

Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.

• Conductive (< 1 x 10⁴ ohms Rtt) Bottom Layer

The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD workstation monitors.

• Heat and Chemical resistant

May be used with soldering iron, flux, and other chemicals.

• Includes Grounding Hardware: 09817- Cord and 09861- Push and Clinch Snap
• Lead-free RoHS compliant
• Made in the United States of America

Technical Info

• 66200 – Dual Layer Rubber Matting
