Features

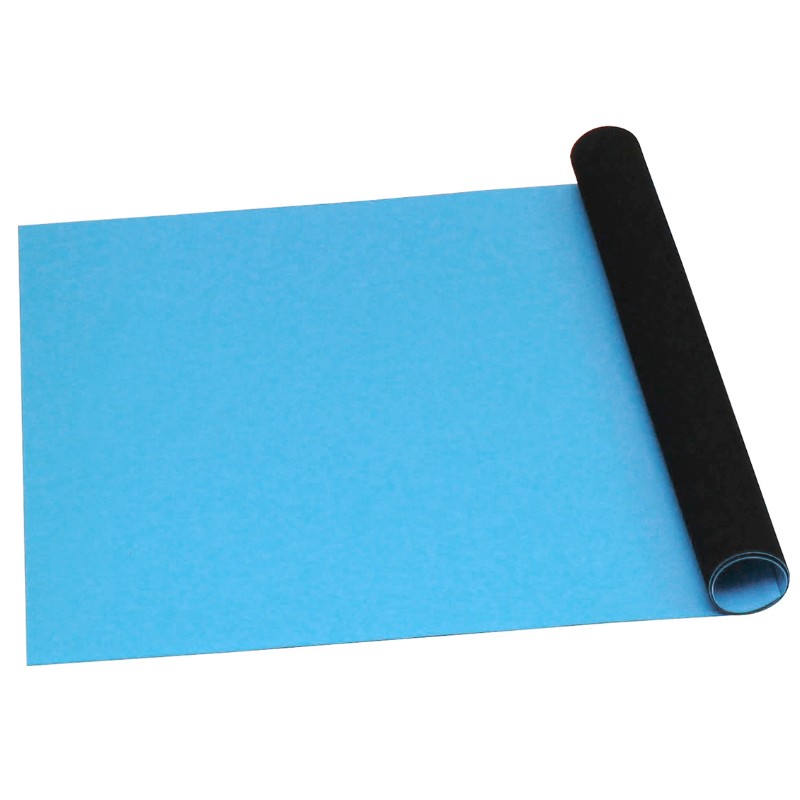

- Dissipative Dual Layer Rubber
- Dissipative (1 x 106 to < 1 x 109 ohms Rtt) Colored Top Layer
- Conductive (< 1 x 104 ohms Rtt) Black Bottom Layer
- No detectable levels of Silicone or DOP
- High Strength Nitrile Rubber Compound
- Ultra-Violent (UV) Stabilizer Additives
- Lead-free RoHS compliant
- Made in the United States of America
Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.
Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.
The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD workstation monitors.
Approved* for used in Class 100 clean rooms. Request a sample to test to your requirements.
Designed to withstand abrasion, stretching, and tearing and may be used in soldering applications with flux and other chemicals. Click Here for Chemical Resistance Chart
Stabilizes color retention, insures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed.
Technical Info
- TB-2000 – Installation and Maintenance of ESD Protective Worksurfaces
- PM-121 – Statfree UC™ Dual Layer Dissipative Rubber, 2mm and 6mm
- TB-7032 – MSDS, Statfree UC™ Dissipative Dual Layer Ultra Clean Rubber
