Mountz TBIH Torque Wrenches

---

Mountz TBIH Torque Wrenches is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to different fastening applications as it is compatible with different head options like open end, box end, flare end, hex key end or a ratchet head.

The slim wrench features a tamper-proof internal adjustment. When the TBIH torque wrench achieves torque, the head breaks-over signaling to the operator to stop applying torque to the fastener or bolt. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening. Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789:2017 (+/- 6% of setting).

Small Torque Wrench – Flexible to Change Head Configurations

Mountz TBIH Torque Wrenches Specifications:

• Torque ranges from 25 ozf.in to 50 lbf.in.
• The break-over mechanism minimizes shock to assemblies.
• Tamper-proof internal adjustment.
• No external adjustment scale – must be preset using a torque analyzer.
• “Breaks-over” when preset torque is reached eliminating over torquing.
• Six different colored aluminum handles allow for colour-coding of specific torque values in production areas.
• Small and lightweight.
• Ideal for use in restricted spaces.
• Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed.

CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS

	Model	Item Name / Number	Handle Color	American	S.I.	Metric	Drive Size
	TBIH Wrench Silver	067999-A	Silver	25 – 50 ozf.in	17.7 – 35.3 cN.m	1.8 – 3.6 kgf.cm	TBIH End
	TBIH Wrench Black	068000-A	Black	25 – 50 ozf.in	17.7 – 35.3 cN.m	1.8 – 3.6 kgf.cm	TBIH End
	TBIH Wrench Blue	068001-A	Blue	25 – 50 ozf.in	17.7 – 35.3 cN.m	1.8 – 3.6 kgf.cm	TBIH End
	TBIH Wrench Red	068002-A	Red	25 – 50 ozf.in	17.7 – 35.3 cN.m	1.8 – 3.6 kgf.cm	TBIH End
	TBIH Wrench Green	068003-A	Green	25 – 50 ozf.in	17.7 – 35.3 cN.m	1.8 – 3.6 kgf.cm	TBIH End
	TBIH Wrench Gold	068004-A	Gold	25 – 50 ozf.in	17.7 – 35.3 cN.m	1.8 – 3.6 kgf.cm	TBIH End
	TBIH Wrench Silver	067999-B	Silver	3 – 12 lbf.in	33.9 – 135.6 cN.m	3.5 – 13.8 kgf.cm	TBIH End
	TBIH Wrench Black	068000-B	Black	3 – 12 lbf.in	33.9 – 135.6 cN.m	3.5 – 13.8 kgf.cm	TBIH End
	TBIH Wrench Blue	068001-B	Blue	3 – 12 lbf.in	33.9 – 135.6 cN.m	3.5 – 13.8 kgf.cm	TBIH End
	TBIH Wrench Red	068002-B	Red	3 – 12 lbf.in	33.9 – 135.6 cN.m	3.5 – 13.8 kgf.cm	TBIH End
	TBIH Wrench Green	068003-B	Green	3 – 12 lbf.in	33.9 – 135.6 cN.m	3.5 – 13.8 kgf.cm	TBIH End
	TBIH Wrench Gold	068004-B	Gold	3 – 12 lbf.in	33.9 – 135.6 cN.m	3.5 – 13.8 kgf.cm	TBIH End
	TBIH Wrench Silver	067999-C	Silver	12 – 21 lbf.in	135.6 – 237.3 cN.m	13.8 – 24.2 kgf.cm	TBIH End
	TBIH Wrench Black	068000-C	Black	12 – 21 lbf.in	135.6 – 237.3 cN.m	13.8 – 24.2 kgf.cm	TBIH End
	TBIH Wrench Blue	068001-C	Blue	12 – 21 lbf.in	135.6 – 237.3 cN.m	13.8 – 24.2 kgf.cm	TBIH End
	TBIH Wrench Red	068002-C	Red	12 – 21 lbf.in	135.6 – 237.3 cN.m	13.8 – 24.2 kgf.cm	TBIH End
	TBIH Wrench Green	068003-C	Green	12 – 21 lbf.in	135.6 – 237.3 cN.m	13.8 – 24.2 kgf.cm	TBIH End
	TBIH Wrench Gold	068004-C	Gold	12 – 21 lbf.in	135.6 – 237.3 cN.m	13.8 – 24.2 kgf.cm	TBIH End
	TBIH Wrench Silver	067999-D	Silver	20 – 50 lbf.in	226 – 565 cN.m	23 – 57.5 kgf.cm	TBIH End
	TBIH Wrench Blue	068001-D	Blue	20 – 50 lbf.in	226 – 565 cN.m	23 – 57.5 kgf.cm	TBIH End
	TBIH Wrench Black	068000-D	Black	20 – 50 lbf.in	226 – 565 cN.m	23 – 57.5 kgf.cm	TBIH End
	TBIH Wrench Red	068002-D	Red	20 – 50 lbf.in	226 – 565 cN.m	23 – 57.5 kgf.cm	TBIH End
	TBIH Wrench Green	068003-D	Green	20 – 50 lbf.in	226 – 565 cN.m	23 – 57.5 kgf.cm	TBIH End
	TBIH Wrench Gold	068004-D	Gold	20 – 50 lbf.in	226 – 565 cN.m	23 – 57.5 kgf.cm	TBIH End

Do drop us an EMAIL

Or TEXT US

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

First select the model (handle color and torque range) Then select a head. The flexible TBIH wrench can adapt to a variety interchangeable head fittings.

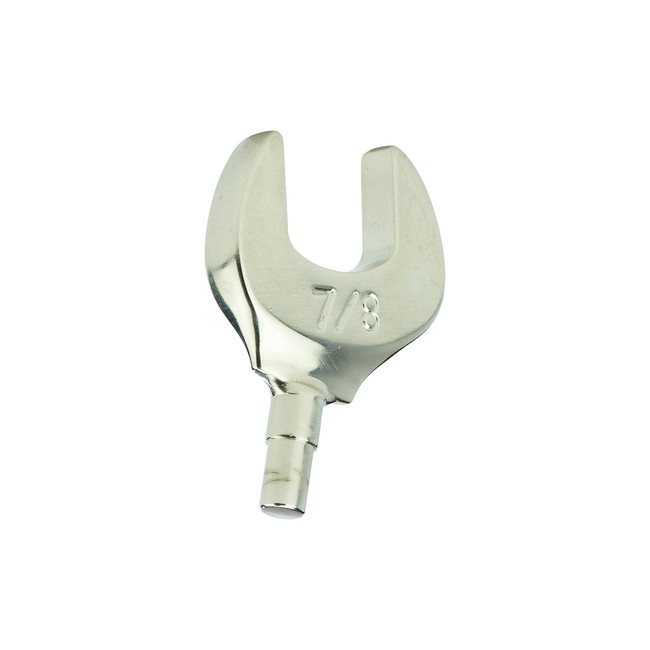

• Open End Head

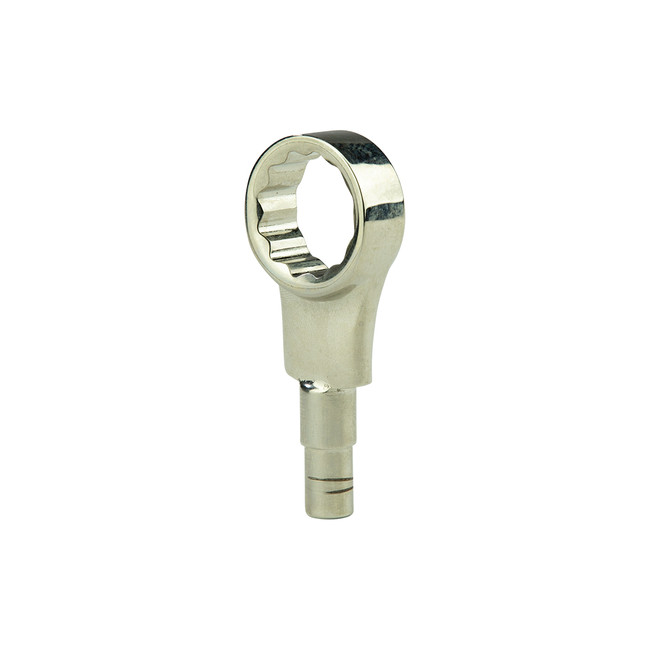

• Box End Head

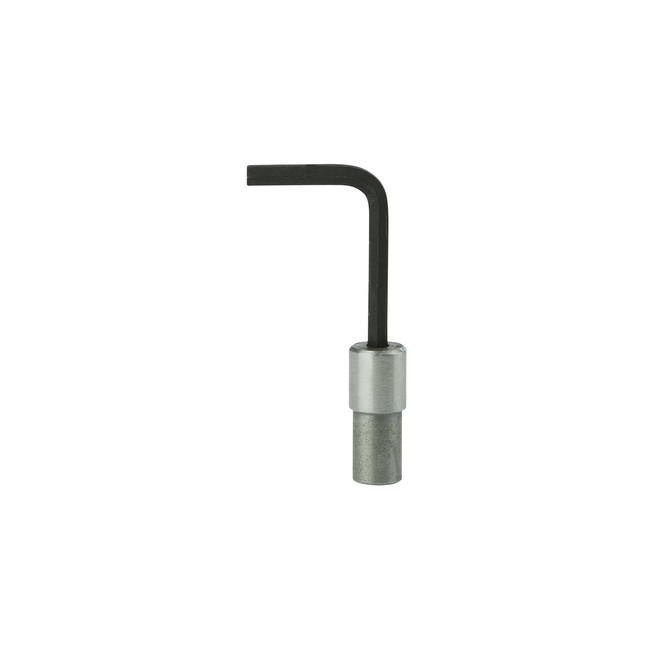

• Hex Key Head

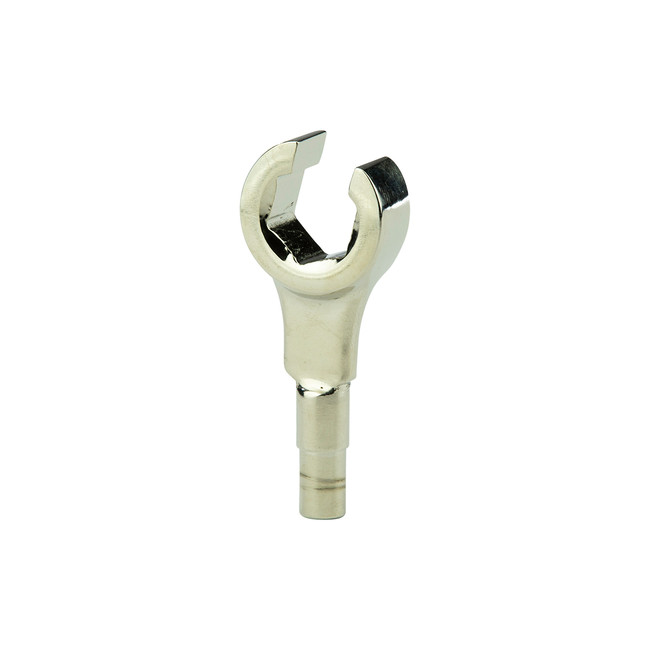

• Flare End Head

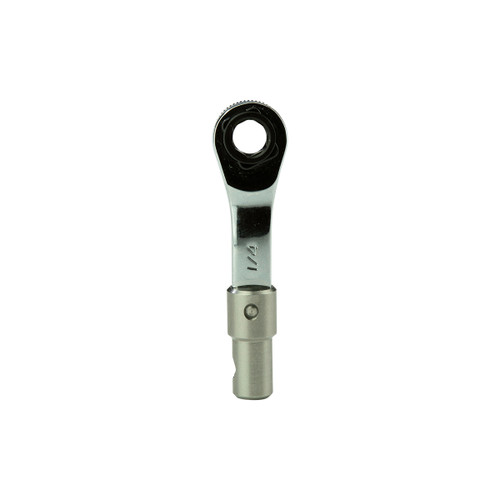

• Ratchet Head

For another option will be the TB-Break Over Model.
