Mountz Torque Meter TorqueMate makes ISO 9001 documentation faster and easier. As an advanced torque controlling, monitoring and documentation solution, the torque analyzer enables operators and engineers to ensure product quality, safety and reliability promptly in a variety of manufacturing environments. The portable torque meters are designed for measuring torque, torque calibration, joint testing, auditing or force and load measurement. The failure of a three-cent fastener that isn
-
- Recommended for all hand screwdrivers, wrenches, or power tools.
- Provides “EZ-Plug & Play” with Mountz torque sensors. Features “ARCII” technology, an instant auto-recognition system of the torque sensor connected to the torque meter PTT.
- Torque Meters operate with torque & force sensors
- Selection of six operating modes: (Track, Peak, First Peak, Audit, Spindle Audit and Torque + Angle).
- Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
- Features built-in Tool Tests operation
- Store a total of 5,000 data points
- Real-time clock for time stamping of readings. USB interface to download readings to PC

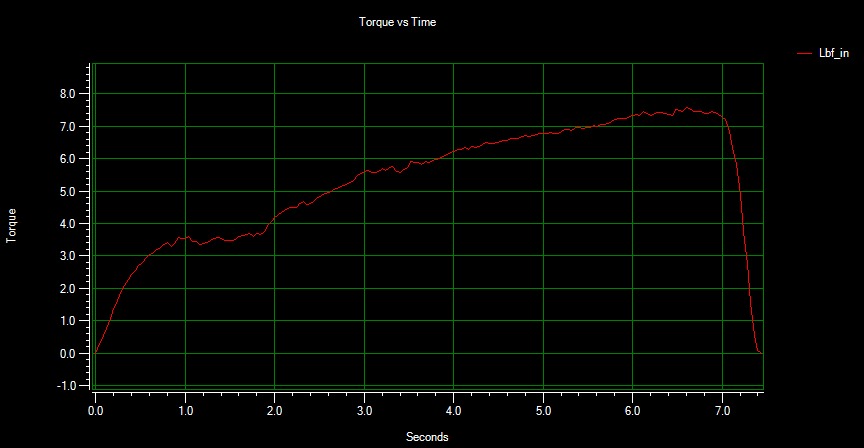

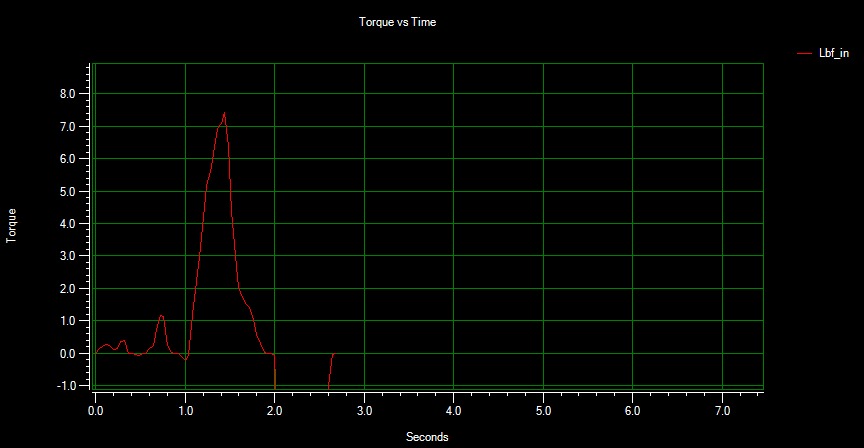

- Real-time graph of torque vs. time using associated PC Windows software
- Features Go / No Go LEDs that illuminate when the high or low setting is achieved
- Easy to use menu structure, a six-digit display, and connect to an external torque sensor
- Features a built-in Li-ion rechargeable battery. High Capacity Li-Ion Batteries for long life (30 hrs with standard transducers and 16 hrs with brushless rotary sensor)
- Torque Meters can connect to most mv/v transducers and can store calibration data for up to 50 non-smart torque & force sensors
- The 5VDC capability allows the unit to be used with a Brushless rotary torque sensor for testing pulse tools and high RPM tools
- Torque and Angle data is displayed simultaneously when used with torque & angle torque sensors, up to 8000 RPM for angle measurement
- Display accuracy is better than +/- 0.25% of reading
- Five low-pass filter selections (3000, 2000, 1500, 500 and 200 Hz)
- “Flash” memory allows upgrades to be done by the user in the field & internet through the USB port
