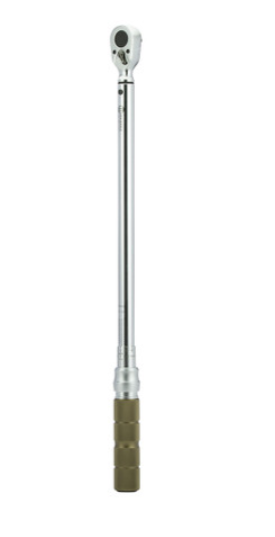

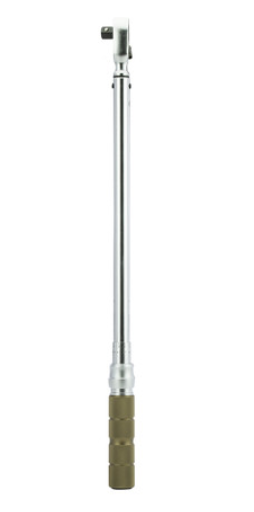

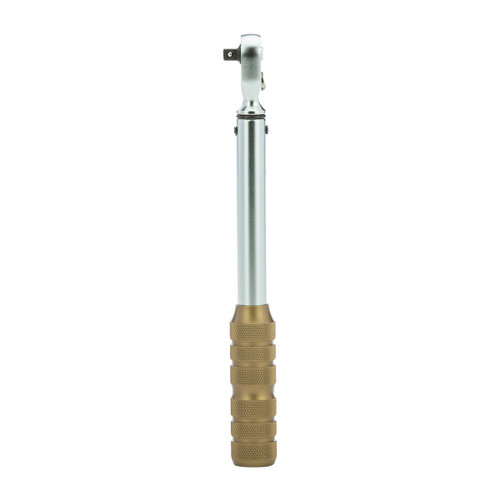

Adjustable Torque Wrench Tool
Product Details
Adjustable Torque Wrench Tool such as model IPT (internally adjustable) that ensures a reliable tightening process. A preset click wrench securely prevents an operator from either incidentally or intentionally tamper with a tool’s torque setting. The cost effective click wrench is durable and robust for a wide variety of industrial fastening applications.
The torque wrench features a ratcheting head style and is built with high quality materials. The tool offers the lowest repair frequency and a low cost to repair. Ideal for manufacturing applications.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 4% of indicated setting).
Adjustable Torque Wrench Tool Benefits
- Durable and robust for industrial fastening applications.
- Preset click torque wrench with a square drive. Bi-directional ratchet head.
- Tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer. Requires Torque Adjusting Key (sold separately).
- Crafted with strong steel shaft with high corrosion resistance.
- Lightly knurled non-slip grip.
- 48 tooth ratchet.
- Positive click can be heard and felt when torque is reached.
Preset Click Torque Wrenches Ranges
| Model | Item # | American | N.m | Drive Size | Length in |
Length mm |
Wt. lbs. |
Wt. kg. |
| IPT 18 | 280041 | 3.7 – 18.4 lbf.ft | 5 – 25 | 1/4″ Sq. Dr. | 8 7/8″ | 226 | 0.7 | 0.32 |
| IPT 36 | 280042 | 7.4 – 36.9 lbf.ft | 10 – 50 | 3/8″ Sq. Dr. | 11 7/8″ | 300 | 1.4 | 0.62 |
| IPT 73 | 280043 | 14.8 – 73.8 lbf.ft | 20 – 100 | 3/8″ Sq. Dr. | 14 3/4″ | 376 | 1.8 | 0.8 |
| IPT 110 | 280044 | 22.1 – 110.7 lbf.ft | 30 – 150 | 3/8″ Sq. Dr. | 15 1/4″ | 386 | 2.4 | 1.08 |
| IPT 150 | 280045 | 29.5 – 147.6 lbf.ft | 40 – 200 | 1/2″ Sq. Dr. | 19 2/3″ | 500 | 2.9 | 1.33 |
| IPT 250 | 280046 | 44.3 – 250.9 lbf.ft | 60 – 340 | 1/2″ Sq. Dr. | 23 1/8″ | 587 | 3.9 | 1.78 |
| IPT 369 | 280047 | 73.8 – 369 lbf.ft | 100 – 500 | 3/4″ Sq. Dr. | 34″ | 865 | 12.1 | 5.5 |
| IPT 885 | 280048 | 171.1 – 885.6 lbf.ft | 240 – 1200 | 1″ Sq. Dr. | 58 1/4″ | 1480 | 13 | 5.9 |
Note! Note – The IPT Torque Adjusting Set Key is required to adjust the internal torque setting for models: IPT 18 – IPT 250 models. (A 3mm allen key, extension bar, and a ratchet wrench or handle are needed to adjust the internal torque setting for models: IPT 369 – IPT 885 models)
| Item # 280049 Model: IPT Torque Adjusting Set Key For models: IPT 18 – IPT 250 models. |
