Quality Cam-Over Wrenches

Cam-over technology ensures correct torque is applied and eliminates fastener breakage issues
Poka-yoke torque wrench prevents over-torque, as a click wrench cannot
Error-proofing assembly process
Safeguards against fastening failures
Calibration life 2x ISO standards, unmatched by any wrench
A preset wrench ideal for fastening applications where operators repeatedly assemble parts at the same torque setting
A preset production torque wrench
Tool is set to a designated torque value and the correct torque value is consistently applied
Internal locking mechanism prevents incidental torque setting changes and ensures fastening precision and repeatability
Tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer
Non-length dependent
Non-strip ratchet head
Wrench tightens in the CW direction only
Coated corrosion-resistant stainless steel head
Anodized aluminum handle
Ergonomic cushion grip reduces discomfort, fatigue, and risk of injury
Two-year unlimited warranty
Lifetime guarantee against manufacturing defects

CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS

Model	Item Name / Number	American	S.I.	Metric	Drive Size
FGC-5	076565	8.9 – 44.2 lbf.in	1 – 5 N.m	10.2 – 51 kgf.cm	1/4″ Sq. Dr.
FGC-10D	076566	17.7 – 88.5 lbf.in	2 – 10 N.m	20.4 – 102 kgf.cm	1/4″ Sq. Dr.
FGC-10A	076567	17.7 – 88.5 lbf.in	2 – 10 N.m	20.4 – 102 kgf.cm	3/8″ Sq. Dr.
FGC-30D	076568	4.4 – 22.1 lbf.ft	6 – 30 N.m	0.6 – 3.1 kgf.m	1/4″ Sq. Dr.
FGC-30A	076569	4.4 – 22.1 lbf.ft	6 – 30 N.m	0.6 – 3.1 kgf.m	3/8″ Sq. Dr.
FGC-75	076570	11.1 – 55.3 lbf.ft	15 – 75 N.m	1.5 – 7.6 kgf.m	3/8″ Sq. Dr.
FGC-125	076571	18.5 – 92.2 lbf.ft	25 – 125 N.m	2.6 – 12.7 kgf.m	1/2″ Sq. Dr.

Data sheet

Manual

Drawing

Whatsapp Contact

Add to Wishlist

Categories: Cam-Over Wrenches, Mountz Torque Wrenches

Description

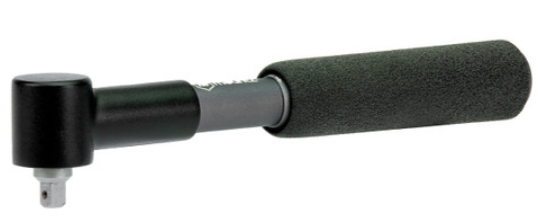

FGC Cam-Over Wrenches

Engineered and assembled in Silicon Valley, the Mountz FGC line of precision preset quality cam-over wrenches are the most advanced torque wrenches for high-level process and quality control.

Safeguarding Against Fastening Failures

Poka-yoke torque wrench prevents over-torque, as a click wrench cannot
Calibration life 2x ISO standards, unmatched by any wrench
Delivers repeatability, traceability and precision for all tightening applications
Preset wrench ensures that the correct torque value is consistently applied to each fastener
Industry leading warranty: 2 years unconditional. Lifetime against defects

A click wrench is not a 100 % process safe and is often susceptible to over-torque results. A click wrench does not physically prevent an operator from applying additional force, he/she can unknowingly generate over-torque.

The FGC cam-over wrenches from Mountz Torque are upgraded next-generation models. When under- or over-torquing puts your products at risk, the FGC wrench delivers the accuracy you need. Safeguarding against fastening failures, the poka-yoke torque wrench prevents over-torque. Implementing this error-proofing wrench removes the operator’s influence out of the torque equation and delivers an accurate and repeatable fastening result than a standard click type wrench. You can give Mountz FGC wrenches to any operator and have the confidence that he/she will deliver the correct torque, time after time. Mountz FGC tools stay in calibration 2X longer than the most stringent industry standard (ISO 6789).

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Learn the error-proofing benefits of upgrading from a click wrench to a cam-over torque wrench in our “Click vs Cam-Over Wrench Technology” white paper.260289

Video Watch Now: FGC Wrench delivers precision & accuracy

Video Watch Now: FGC Set-up and Torque Adjustment Guide
